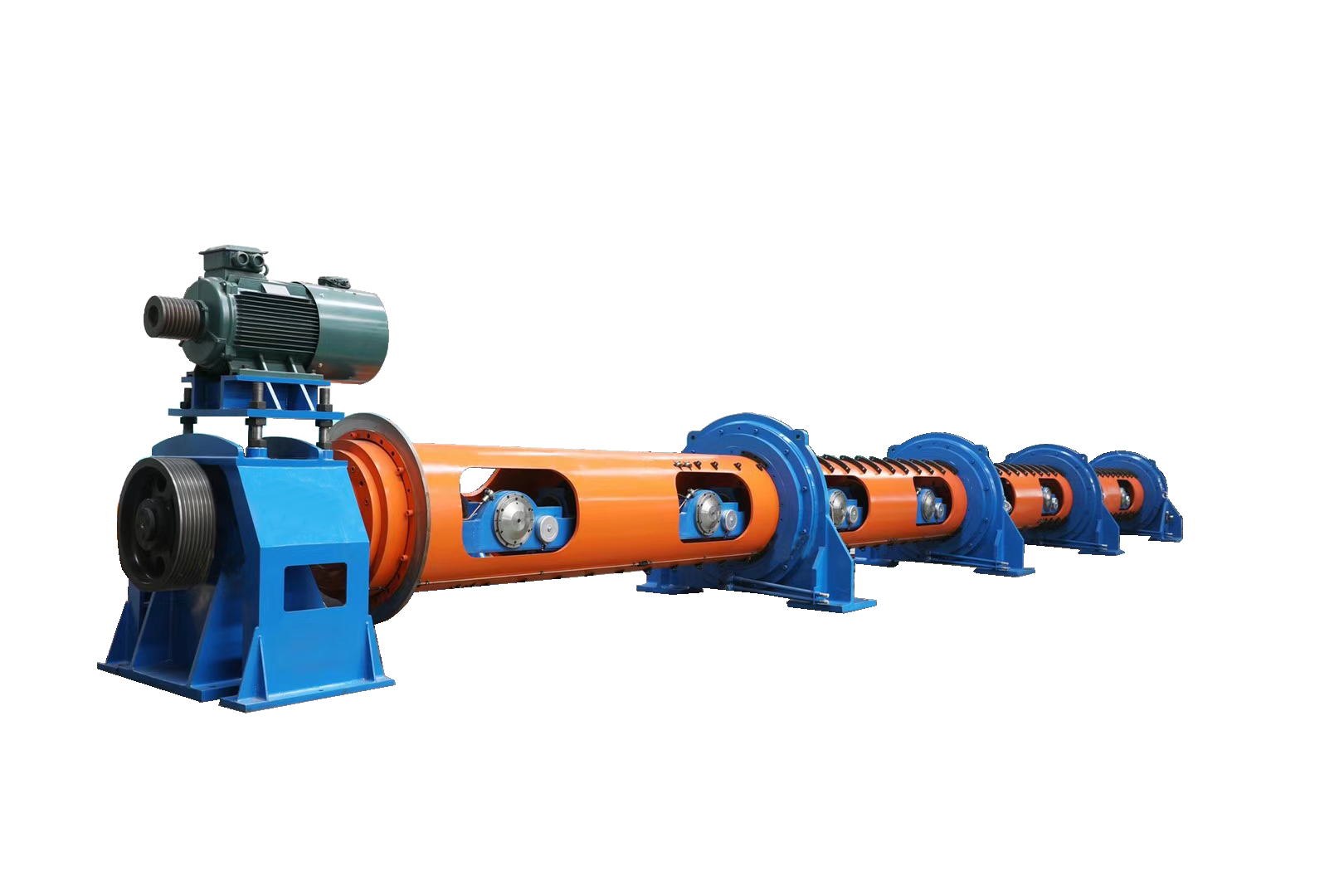

HH-S-500/1+6 High Speed Tubular Stranding Machine

HH-S-500/1+6 High Speed Tubular Stranding Machine
HH-S-500/1+6 High Speed Tubular Stranding Machine HH-S-500/1+6 High Speed Tubular Stranding Machine HH-S-500/1+6 High Speed Tubular Stranding Machine HH-S-500/1+6 High Speed Tubular Stranding Machine HH-S-500/1+6 High Speed Tubular Stranding Machine
Product Attributes :

FOB Price: 48,000 ~ 49,000 USD

Payment Terms: T/T, L/C

Delivery Time: 60 working days

Max cage rotate speed: 600r/min

Main motor power 30 KW

Warranty: 12 months

Product Description




The machine is mainly used for twisting of 7 strands cable with 6+1 structure , suitable for control cable, aluminum stranded, copper stranded etc. The appearance of the unit has been designed by professionals, and the production process has been upgraded, with atmospheric appearance, stable high-speed operation and low noise.




1.We have developed a special high-speed back-up bearing for the tubular strander.

2. Some models run more stable when using cast bottom plate.

3. This pneumatic manufacturing machine uses a spool loader that is pneumatically loosened but automatically clamped. Loading and unloading the spool is easier and more convenient.

4. The optimized design of large bearing lubrication and sealing mechanism helps to control the leakage of lubricating oil well.

5. Optimized the loading window on the tube to increase the rotation speed.









No. Items Quantity
1

Φ 500mm Manual pay-off stand

1 Set
2

Φ 500/6 Bobbins cage

1 Set
3

Wire-stranded mould stand

1 Set
4

Meter counter

1 Set
5

Φ 1000mm Double capstan wheels

1 Set
6

Φ 1600mm Column type take-up with traverse

1 Set
7

Transmission system

1 Set
8

Electric control system

1 Set
9

Safe cover

1 Set








No.

Items

Features

1

Single wire Diameter

Φ1.2 - Φ5mm

2

Max stranded Diameter

Φ 15mm

3

Max cage rotate speed

600r/min

4

Capstan wheel diameter

Φ1000mm

5

Central pay-off bobbin

Φ 400-630mm

6

Pay-off bobbin in cage

Φ 500mm

7

Take-up bobbin

Φ 800mm - Φ 1600mm

8

Main motor power

30 KW, AC motor





1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
