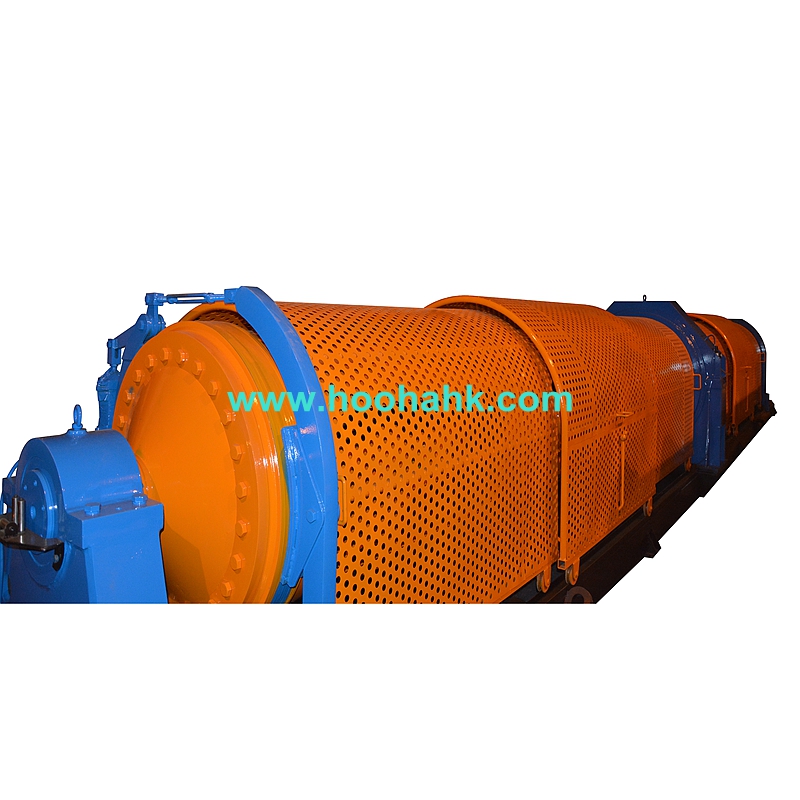

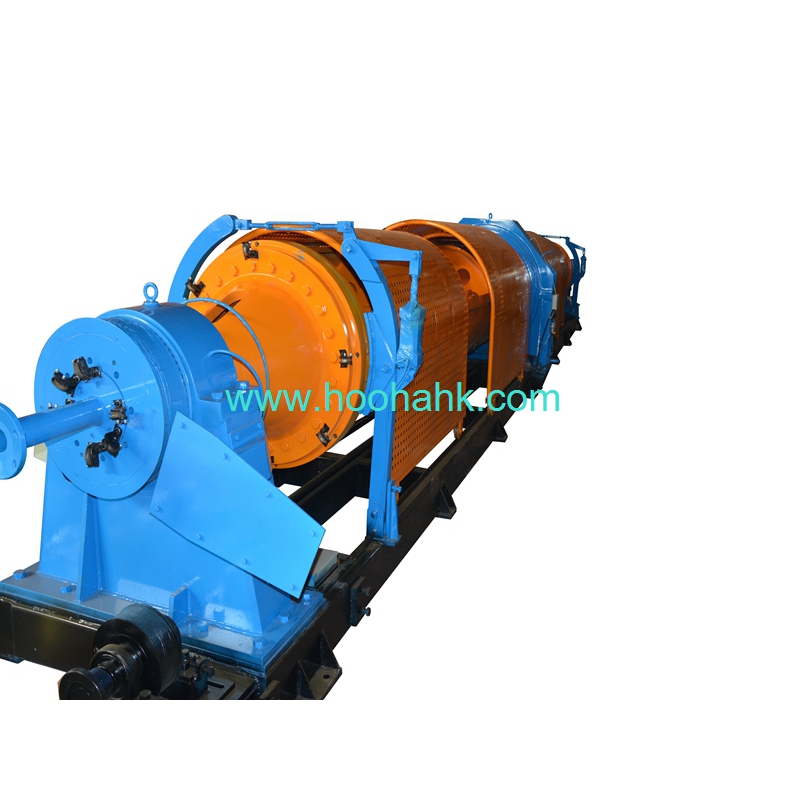

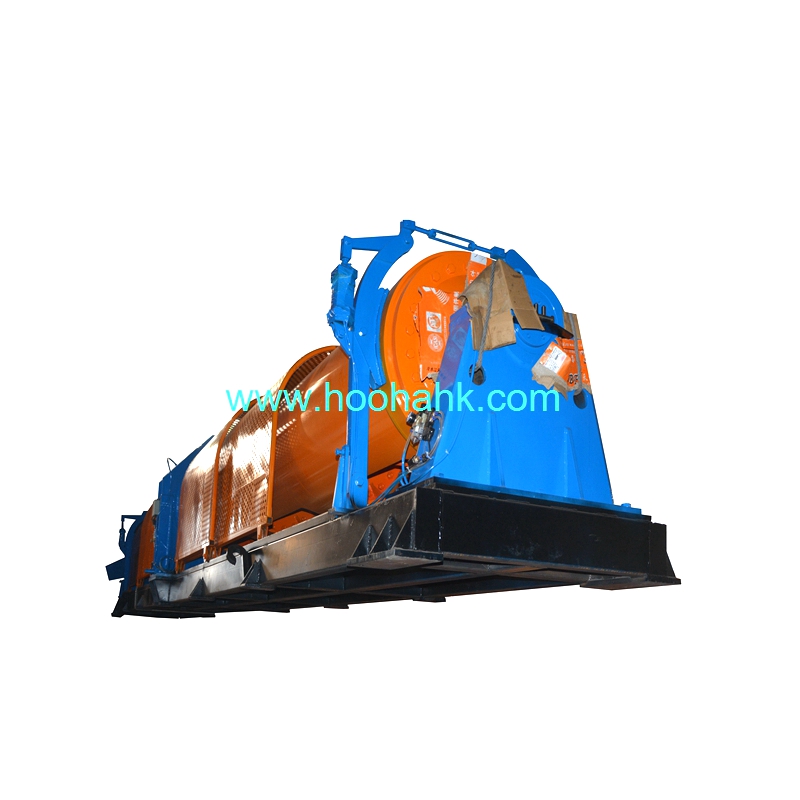

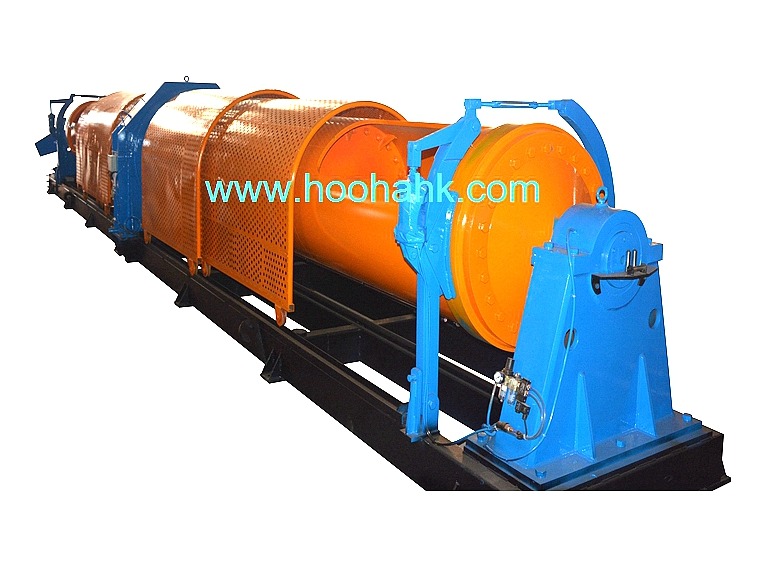

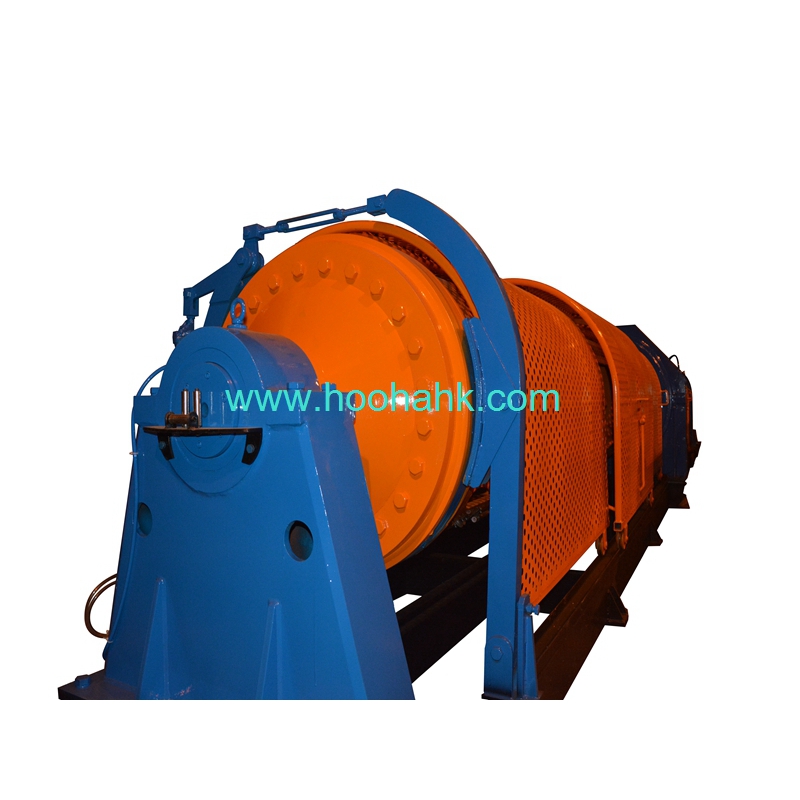

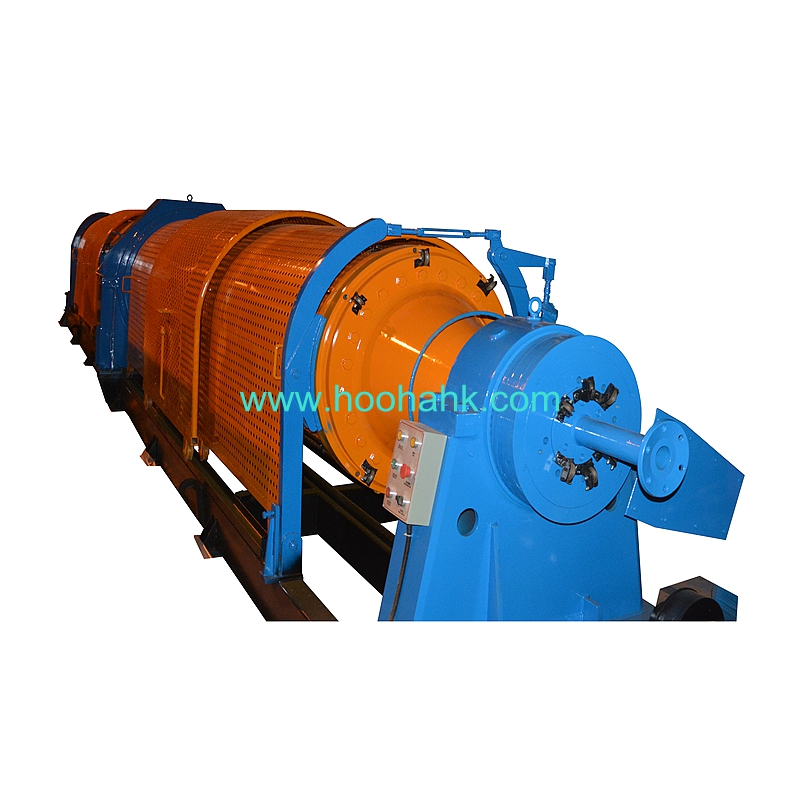

HH-S-400/1+6 High Speed Tubular Stranding Machine

HH-S-400/1+6 High Speed Tubular Stranding Machine
HH-S-400/1+6 High Speed Tubular Stranding Machine HH-S-400/1+6 High Speed Tubular Stranding Machine HH-S-400/1+6 High Speed Tubular Stranding Machine HH-S-400/1+6 High Speed Tubular Stranding Machine HH-S-400/1+6 High Speed Tubular Stranding Machine
Product Attributes :

FOB Price: 38,000 ~ 39,000 USD

Payment Terms: T/T, L/C

Delivery Time: 60 working days

Max cage rotate speed: 700r/min

Main motor power:  18.5 KW

Warranty: 12 months

Product Description




The machine is mainly used for twisting of 7 strands cable with 6+1 structure , suitable for control cable, aluminum stranded, copper stranded etc. The appearance of the unit has been designed by professionals, and the production process has been upgraded, with atmospheric appearance, stable high-speed operation and low noise.



1. High working speed

The speed of the 200/1 + 6 tubular stranding machine is 1000 rpm, and the speed of the 800/1 + 12 type stranding machine is 300 rpm.



2. Various sizes

The spool diameter of the tubular stranding machine ranges from 200mm to 800mm. The number of bobbins is 3 to 36.



3. Multiple tension modes

Optional tension modes include magnetic tension, mechanical tension, mechanical tension with feedback, etc.








No. Items Quantity
1

Φ 400mm Manual pay-off stand

1 Set
2

Φ 400/6 Bobbins cage

1 Set
3

Wire-stranded mould stand

1 Set
4

Meter counter

1 Set
5

Φ 800mm Double capstan wheels

1 Set
6

Φ 1600mm Column type take-up with traverse

1 Set
7

Transmission system

1 Set
8

Electric control system

1 Set
9

Safe cover

1 Set








No.

Items

Features

1

Single wire Diameter

Φ0.5 - Φ2.5mm

2

Max stranded Diameter

Φ 15mm

3

Max cage rotate speed

700r/min

4

Capstan wheel diameter

Φ800mm

5

Central pay-off bobbin

Φ 400-630mm

6

Pay-off bobbin in cage

Φ 400mm

7

Take-up bobbin

Φ 800mm - Φ 1600mm

8

Main motor power

18.5KW, AC motor






1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
