HH-B-800 High Speed Bunching Machine

HH-B-800 High Speed Bunching Machine
HH-B-800 High Speed Bunching Machine HH-B-800 High Speed Bunching Machine HH-B-800 High Speed Bunching Machine HH-B-800 High Speed Bunching Machine HH-B-800 High Speed Bunching Machine
Product ID :
HH-B-800
Product Attributes :

FOB Price: 20,000 ~ 21,000 USD

Payment Terms: T/T, L/C

Delivery Time: 25 working days

Measurment(L*W*H): 3500*1800*1800MM

Power Request: 11 kw

Warranty: 12 months

Product Description




It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.







1. Humanized design of the whole machine, simple and convenient operation. Adopting frequency conversion control method with touch screen and PLC, automatic control, man-machine interface and servo motor drive. The production status is visible on the touch screen. Using man-machine dialogue to query, adjust and control, the bunching precision is greatly improved and the worker’s operation difficulty is reduced.

2. The advanced technology of quantitative and timed automatic lubrication can automatically supply oil to the equipment at the set time interval, so that the equipment can be well lubricated during high-speed operation.

3. Comprehensive fault and safety alarm warning system. It can realize the stop of broken wire, stop of finished wire and tension detection device, which guarantees the quality of wire bunching.






No.  Items Quantity

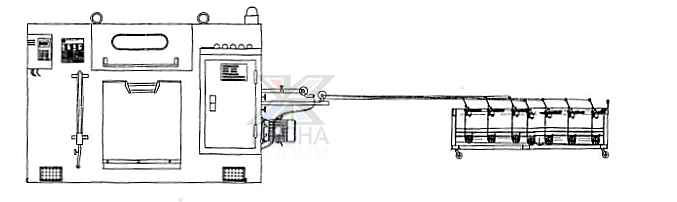

Reference Picture

1

800 Bunching machine

1 unit

2

Pay off stand for 7 strands copper wire

1 unit






No.

Items

Features

1

Model

 Right-hand model

2

Rotation speed of arched band

Max: 1200 RPM

3

Twisting pitch

22.51-152.32mm

4

Stranded wire length calculation

How many meters per minute = twisting distance *2/1000* twisting bow speed per minute

5

Twisting direction

Arbitrary(left or right)

6

Single wire diameter

Ø0.4mm-Ø1.35mm

7

Stranding area

1 mm2-10 mm2

8

Traverse

German-style bearing polished rod Traverse, the Traverse range and Traverse distance can be adjusted

9

Warning light

Red: shutdown due to failure

10

Measurement (L*W*H)

3500*1800*1800MM







1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
