HH-E-150 Extrusion Machine for Power Cable PVC Insulation and Jacket

HH-E-150 Extrusion Machine for Power Cable PVC Insulation and Jacket
HH-E-150 Extrusion Machine for Power Cable PVC Insulation and Jacket HH-E-150 Extrusion Machine for Power Cable PVC Insulation and Jacket HH-E-150 Extrusion Machine for Power Cable PVC Insulation and Jacket
Product ID :
HH-E-150
Product Attributes :

FOB Price: 179,500 ~ 185,500 USD

Payment Terms: T/T, L/C

Delivery Time: 30 working days

Measurment(L*W*H): 60m*7m*5m

Production Speed: Max 80 m/min

Power Request: 220 kw

Warranty: 12 months

Product Description

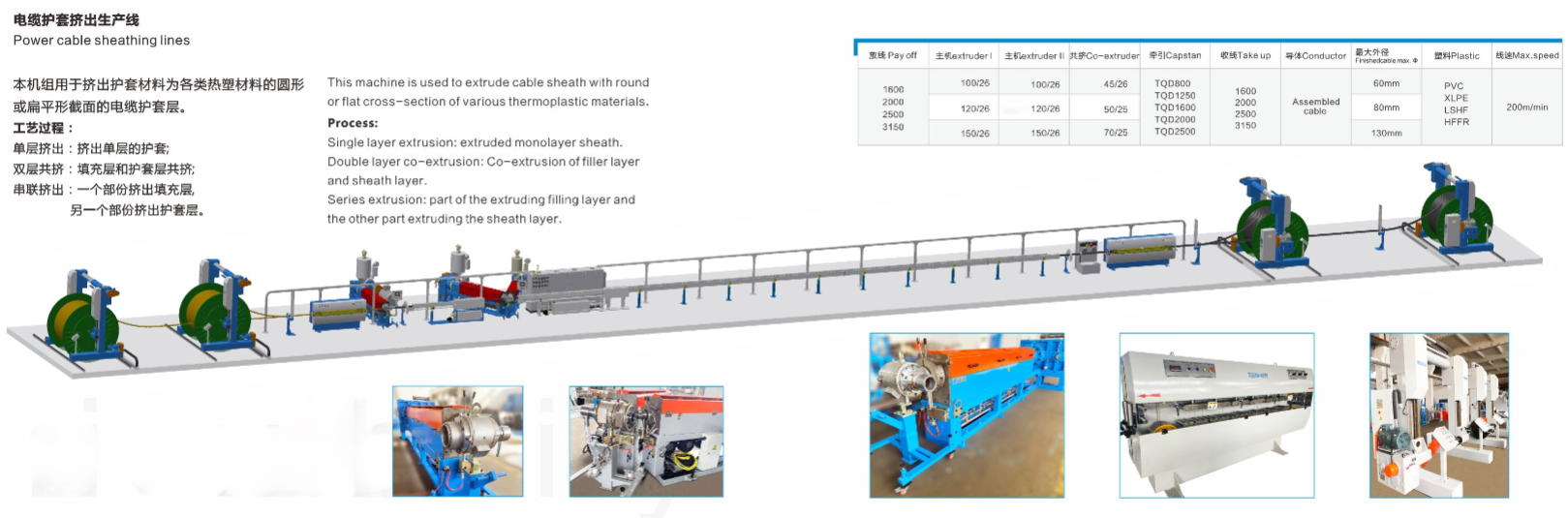

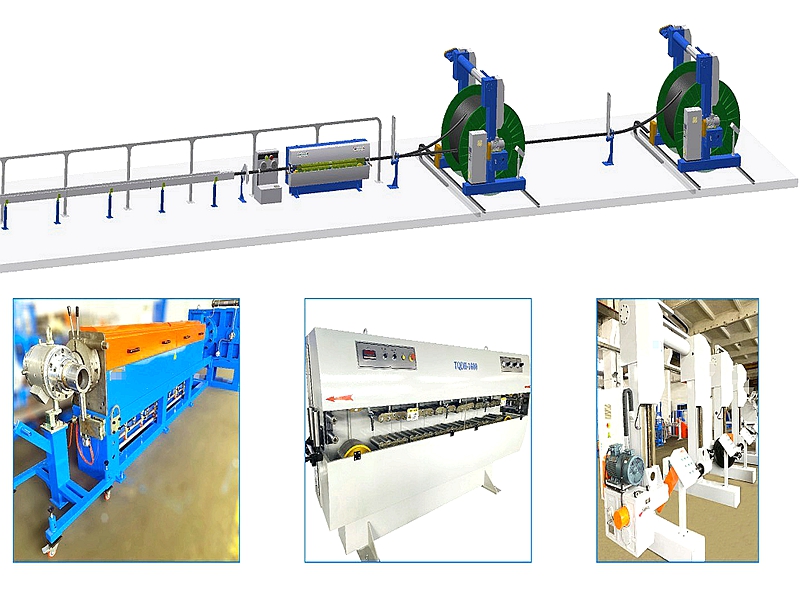

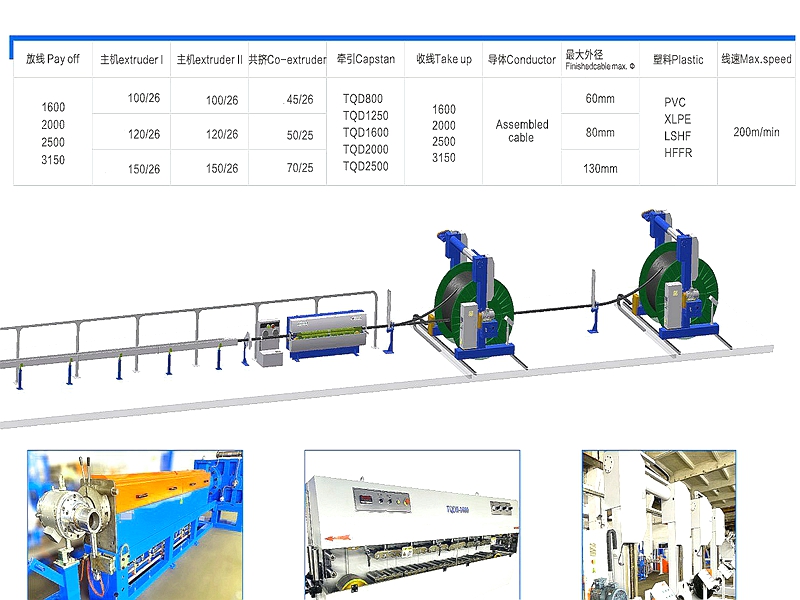

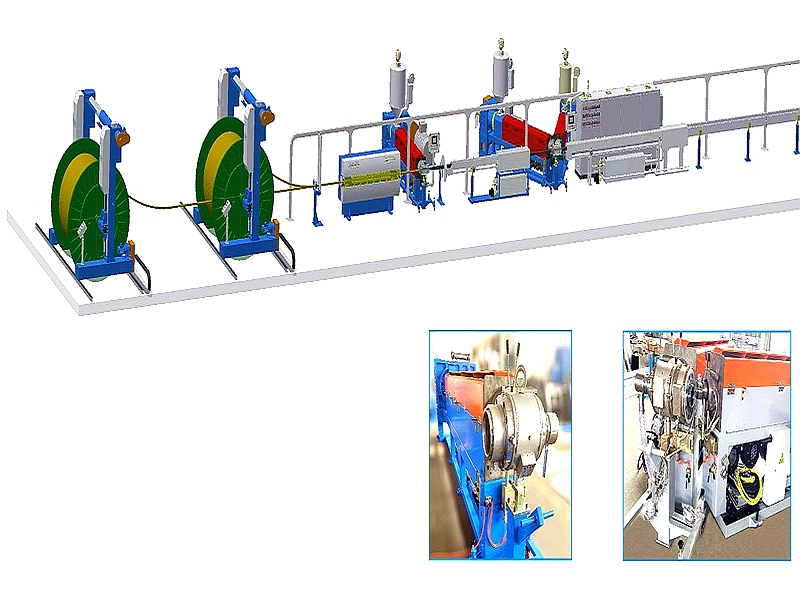

This production line is mainly used for extruding PVC insulation or jacket for power cable and communication cable etc with section area 150-500 square mm.




♦Precise extrusion process control, the error of extrusion outer diameter can be controlled within ±0.01mm.

♦It can produce high strength, high temperature resistance, aging resistance, chemical resistance, insulation, and flame retardant power cable extrusion screws. The reducer and mold are specially designed to ensure product quality.

♦The whole line can be equipped with Chinese and English man-machine interface, intelligent control, and reliable performance.

♦Life-long maintenance with timely service and low cost.

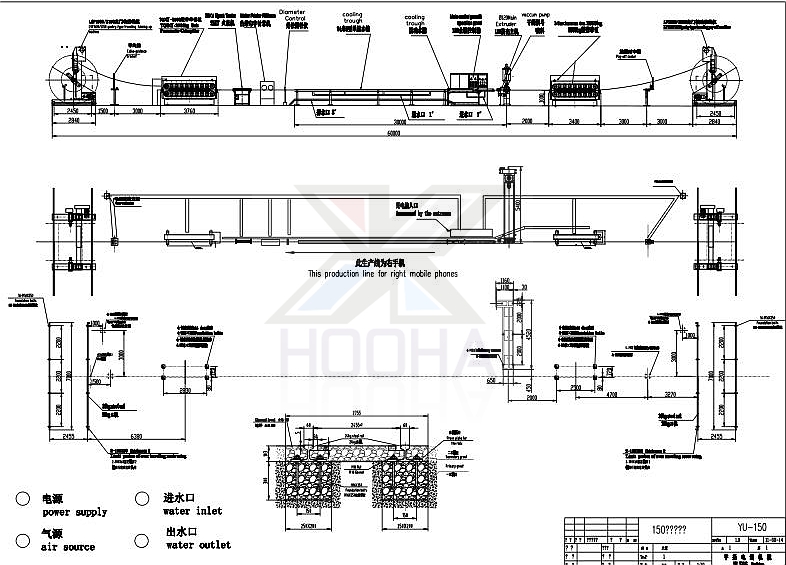

NO. Description Quantity Picture
1

2500-3150 End shaft pay-off stand

1 set
2

1250KG caterpillar tractor

1 set
3

5-wheel Straightening device

1 set
4

150 Host extruder

1 set
5 Electrical control box 1 set
6

2.5m movable water tank

1 set
7

28m fixed water tank

1 set
8 2500KG caterpillar tractor 1 set
9 Diameter detector 1 set
10 Ink jet printer 1 set
11 Spark tester 1 set
12

2500-3150 End shaft take-up stand

1 set
13 Spare parts and tools 1 set
14 Diagram, operation and maintenance manual 1 set







No.

Items

Features

1

Inlet Wire Diameter

40~90mm

2

Finished Wire Diameter

60~120 mm

3

Cross Sectional Area

150~500 square mm

4

Extrusion Speed

Max 80 m/min

5

Extrusion Capacity

600 kg/h

6

Installed Capacity

220 kva

7

Voltage

380V, can be customized

8

Weight

15000 kg

9

Measurement (L*W*H)

60*7*5 m

10

Workers recommendation

4 workers








Reliable Products:


1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

3.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.


All-round Service:


1.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

2.Our rich-experience sales team will advice your concerns professionally with rigorous working attitude and high communication efficiency.
